UNDERFLOOR HEATING

Comfort from
the ground up.

Explore flooring systems for solid floors, timber joists and overlay installations. Find the construction that suits your project, with illustrated build-ups and practical installation details.

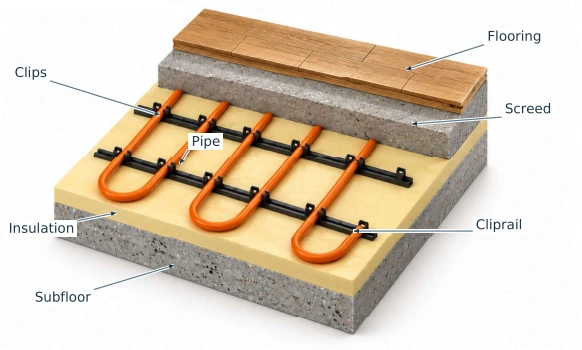

Labelled cutaway of the solid floor — clips and rails showing pipe placement and floor layers
Schematic cutaway · Not to scale

Solid floors

Solid Floor — Clips and Rails

Underfloor heating pipe is fixed to pre-laid insulation, such as Celotex, using either clips or adhesive-backed cliprail and clips. Once laid and pressure tested, the pipes are covered in screed.

The screed layer conducts and stores heat, making this an efficient form of underfloor heating.

Pipe fixing
Clips or adhesive-backed cliprail
Floor build-up
Insulation, pipe, screed and flooring

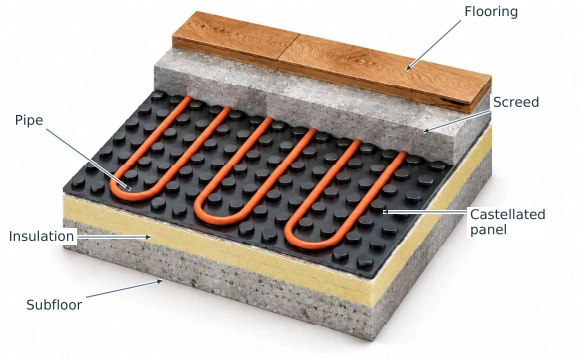

Labelled cutaway of the solid floor — fixing panel showing pipe placement and floor layers
Schematic cutaway · Not to scale

Solid floors

Solid Floor — Fixing Panel

A castellated or fixing panel provides an alternative to clips and rails for securing the pipes. Once laid and pressure tested, the pipes are covered in screed, which conducts and stores heat.

Castellated panels can also be supplied with a thin layer of insulation on the underside where additional floor insulation is required.

Pipe fixing
Castellated fixing panel
Additional insulation
Insulated underside available

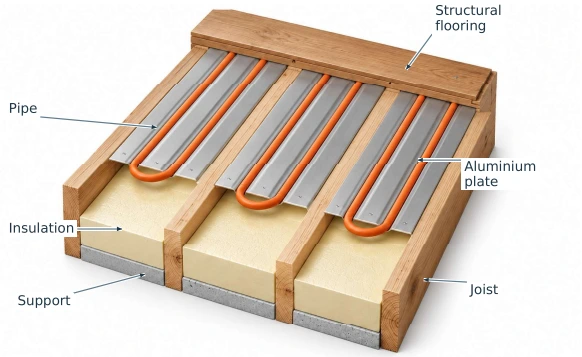

Labelled cutaway of the plate system showing pipe placement and floor layers
Schematic cutaway · Not to scale

Timber joisted floors

Plate System

Aluminium diffuser plates hold the pipes and conduct heat to create a more even temperature in timber joisted floors. Where the existing joists are set at approximately 400 mm centres, the plates can be laid directly between them to minimise any rise in floor level.

Any notching of existing joists must comply with building regulations. The plates should be in direct contact with the floor decking, with insulation below to limit downward heat transfer.

Heat distribution
Aluminium diffuser plates
Typical joist centres
400 mm

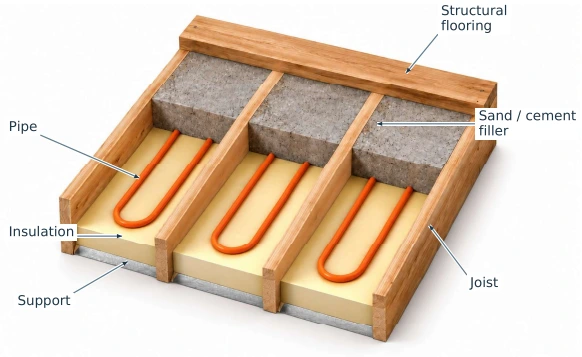

Labelled cutaway of the pug system showing pipe placement and floor layers
Schematic cutaway · Not to scale

Suspended floors

Pug System

The Pug system is an alternative to diffuser plates when joist spacing is irregular or unsuitable, and a rise in the finished floor level is not possible.

Support is required below the insulation. A sand/cement mix is laid over the pipes and between the joists, acting as both a heat conductor and a thermal store in a similar way to screed. This system can require more installation work.

Heat distribution
Sand/cement filler between joists
Support
Required below the insulation

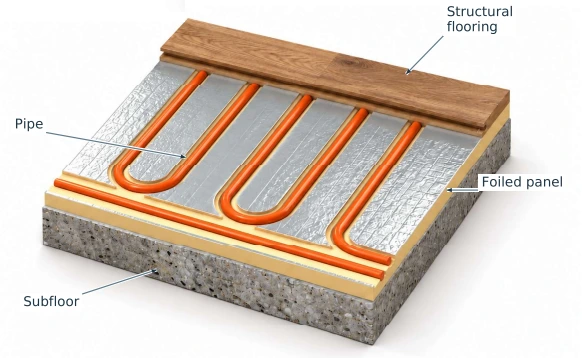

Labelled cutaway of the overlay — light showing pipe placement and floor layers
Schematic cutaway · Not to scale

Overlay systems

Overlay — Light

Foiled XPS insulation panels are routed for 16 mm pipe at 150 mm centres, with three cross runs. These panels are best suited to floating floor applications and are not suitable for direct tiling.

Apply a levelling compound to the floor substrate before laying the panels, then fit structural floor decking or suitable engineered wood or laminate. Transit panels at 50 mm centres are also available to ease installation.

Panel size
1250 × 600 × 20 mm
Pipe size / centres
16 mm / 150 mm
Transit panel centres
50 mm
Typical allowance
1.5 panels per m²

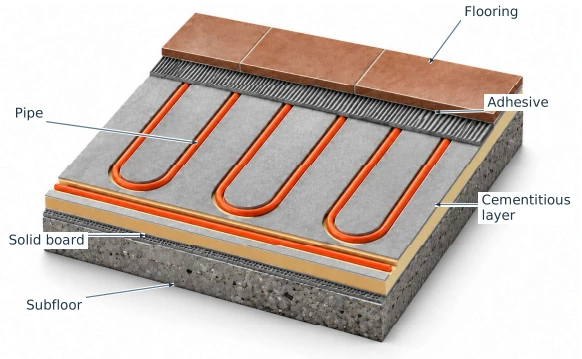

Labelled cutaway of the overlay — solid showing pipe placement and floor layers
Schematic cutaway · Not to scale

Overlay systems

Overlay — Solid

Cement-faced XPS insulated panels are routed for 16 mm pipe at 200 mm centres. They require a solid base and should be fixed down with a flexible tile adhesive before laying the pipe.

Once set, the panels are suitable for tiling over, again using a flexible tile adhesive. Transit panels at 50 mm centres are also available to ease installation.

Panel size
1200 × 600 × 20 mm
Pipe size / centres
16 mm / 200 mm
Transit panel centres
50 mm
Typical allowance
1.5 panels per m²
