Products/Compact Radiators/Hamilton Compact 22

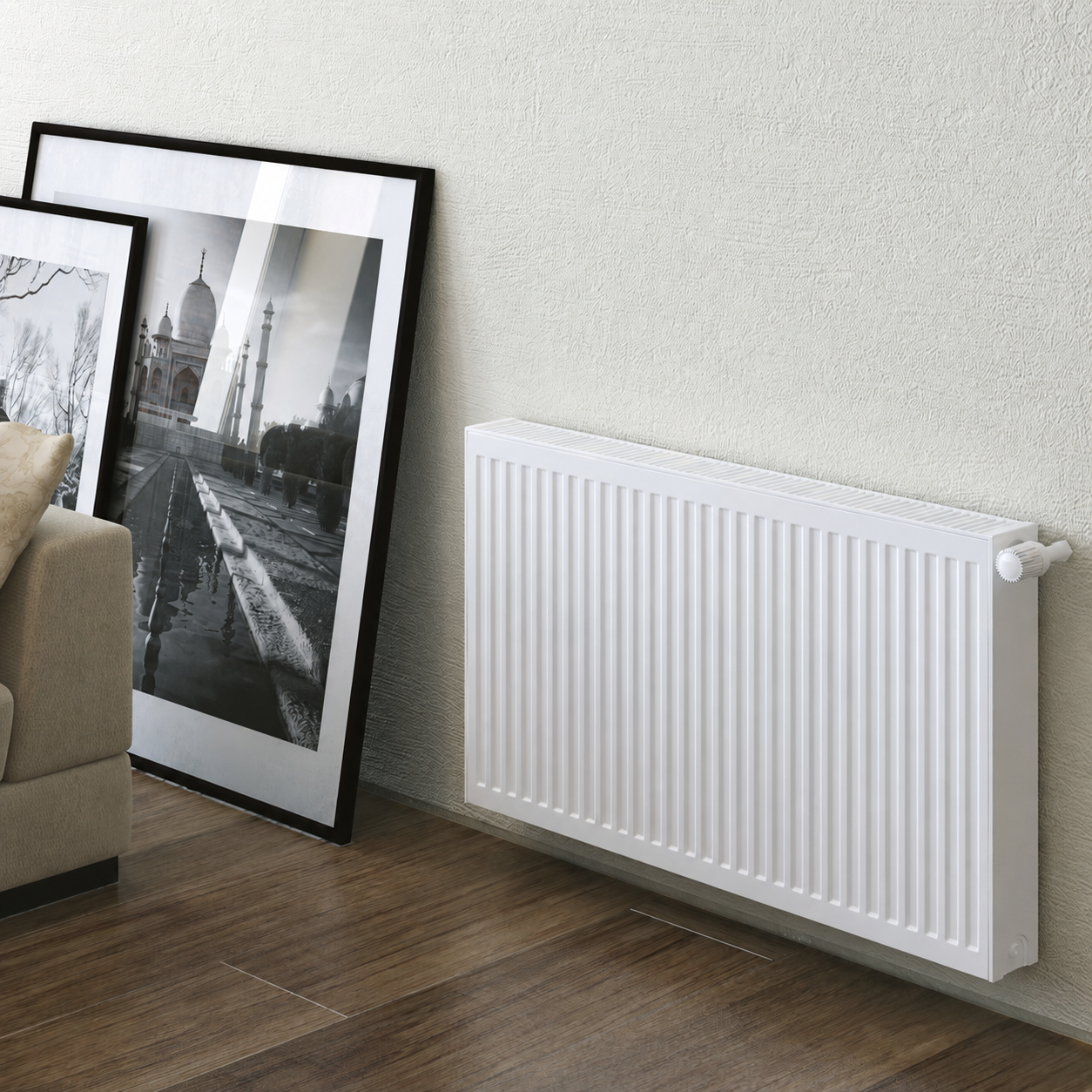

Representative Type 22 imagery is shown; pictured size may differ from the selected configuration.

Compact Radiators

Hamilton Compact 22

Double-panel compact radiator with twin convectors.

Brand: Hamilton RadsProduct type: Radiators

CHOOSE YOUR CONFIGURATION

Size & colour

Choose a finish and size to find your configuration.

£87.33

PRODUCT LITERATURE

PDF downloads.

Download the price-free product information for this range, including descriptions, dimensions and performance data.

PDFHamilton Compact 22 product sheetDescriptions, dimensions and performance dataDownload

HOW TO ORDER

Ready to specify?

Use the selected product code with your quantity and project details. Our trade team can confirm configuration and availability.

Make an enquiry

FULL PRODUCT RANGE

Product
specifications.

Open the dropdown to search by product code, finish, size or output.

View product specifications87 variants

HeightWidthOutputBTU

Product code	Model	Height	Width	Output	BTU	List price
400696	Hamilton Compact 22 - 300x400	300 mm	400 mm	387 W	1320 BTU	£87.33
400697	Hamilton Compact 22 - 300x500	300 mm	500 mm	484 W	1650 BTU	£102.00
400698	Hamilton Compact 22 - 300x600	300 mm	600 mm	580 W	1980 BTU	£118.03
400699	Hamilton Compact 22 - 300x800	300 mm	800 mm	773 W	2638 BTU	£147.82
400700	Hamilton Compact 22 - 300x1000	300 mm	1000 mm	967 W	3300 BTU	£182.08
400701	Hamilton Compact 22 - 300x1200	300 mm	1200 mm	1160 W	3959 BTU	£194.92
400702	Hamilton Compact 22 - 300x1400	300 mm	1400 mm	1353 W	4618 BTU	£216.70
400703	Hamilton Compact 22 - 300x1600	300 mm	1600 mm	1547 W	5280 BTU	£252.65
400704	Hamilton Compact 22 - 300x1800	300 mm	1800 mm	1740 W	5939 BTU	£271.00
400705	Hamilton Compact 22 - 300x2000	300 mm	2000 mm	1934 W	6601 BTU	£298.20
400706	Hamilton Compact 22 - 300x3000	300 mm	3000 mm	2901 W	9901 BTU	£502.75
400707	Hamilton Compact 22 - 400x400	400 mm	400 mm	490 W	1672 BTU	£97.63
400708	Hamilton Compact 22 - 400x500	400 mm	500 mm	612 W	2089 BTU	£114.88
400709	Hamilton Compact 22 - 400x600	400 mm	600 mm	735 W	2509 BTU	£137.57
400710	Hamilton Compact 22 - 400x700	400 mm	700 mm	857 W	2925 BTU	£140.86
400711	Hamilton Compact 22 - 400x800	400 mm	800 mm	980 W	3345 BTU	£174.48
400712	Hamilton Compact 22 - 400x900	400 mm	900 mm	1102 W	3761 BTU	£181.10
400713	Hamilton Compact 22 - 400x1000	400 mm	1000 mm	1225 W	4181 BTU	£211.38
400714	Hamilton Compact 22 - 400x1100	400 mm	1100 mm	1347 W	4597 BTU	£221.35
400715	Hamilton Compact 22 - 400x1200	400 mm	1200 mm	1470 W	5017 BTU	£240.80
400716	Hamilton Compact 22 - 400x1300	400 mm	1300 mm	1592 W	5433 BTU	£274.49
400717	Hamilton Compact 22 - 400x1400	400 mm	1400 mm	1715 W	5853 BTU	£268.43
400718	Hamilton Compact 22 - 400x1600	400 mm	1600 mm	1960 W	6689 BTU	£303.02
400719	Hamilton Compact 22 - 400x1800	400 mm	1800 mm	2205 W	7526 BTU	£337.55
400720	Hamilton Compact 22 - 400x2000	400 mm	2000 mm	2450 W	8362 BTU	£372.07
400721	Hamilton Compact 22 - 400x2200	400 mm	2200 mm	2695 W	9198 BTU	£509.10
400722	Hamilton Compact 22 - 400x2400	400 mm	2400 mm	2940 W	10034 BTU	£605.18
400723	Hamilton Compact 22 - 500x400	500 mm	400 mm	589 W	2010 BTU	£101.48
400724	Hamilton Compact 22 - 500x500	500 mm	500 mm	737 W	2515 BTU	£137.65
400725	Hamilton Compact 22 - 500x600	500 mm	600 mm	884 W	3017 BTU	£159.85
400726	Hamilton Compact 22 - 500x700	500 mm	700 mm	1031 W	3519 BTU	£181.77
400727	Hamilton Compact 22 - 500x800	500 mm	800 mm	1179 W	4024 BTU	£204.27
400728	Hamilton Compact 22 - 500x900	500 mm	900 mm	1326 W	4526 BTU	£226.42
400729	Hamilton Compact 22 - 500x1000	500 mm	1000 mm	1474 W	5031 BTU	£248.57
400730	Hamilton Compact 22 - 500x1100	500 mm	1100 mm	1621 W	5532 BTU	£264.70
400731	Hamilton Compact 22 - 500x1200	500 mm	1200 mm	1768 W	6034 BTU	£284.45
400732	Hamilton Compact 22 - 500x1300	500 mm	1300 mm	1916 W	6539 BTU	£311.78
400733	Hamilton Compact 22 - 500x1400	500 mm	1400 mm	2063 W	7041 BTU	£317.07
400734	Hamilton Compact 22 - 500x1500	500 mm	1500 mm	2221 W	7546 BTU	£361.52
400735	Hamilton Compact 22 - 500x1600	500 mm	1600 mm	2358 W	8049 BTU	£358.70
400736	Hamilton Compact 22 - 500x1800	500 mm	1800 mm	2653 W	9055 BTU	£400.23
400737	Hamilton Compact 22 - 500x2000	500 mm	2000 mm	2948 W	10062 BTU	£441.82
400738	Hamilton Compact 22 - 500x2200	500 mm	2200 mm	3243 W	11068 BTU	£530.22
400739	Hamilton Compact 22 - 500x2400	500 mm	2400 mm	3538 W	12074 BTU	£626.78
400740	Hamilton Compact 22 - 600x400	600 mm	400 mm	684 W	2334 BTU	£138.38
400741	Hamilton Compact 22 - 600x500	600 mm	500 mm	855 W	2918 BTU	£155.38
400742	Hamilton Compact 22 - 600x600	600 mm	600 mm	1026 W	3502 BTU	£178.23
400743	Hamilton Compact 22 - 600x700	600 mm	700 mm	1197 W	4085 BTU	£211.27
400744	Hamilton Compact 22 - 600x800	600 mm	800 mm	1368 W	4669 BTU	£228.77
400745	Hamilton Compact 22 - 600x900	600 mm	900 mm	1539 W	5253 BTU	£253.90
400746	Hamilton Compact 22 - 600x1000	600 mm	1000 mm	1710 W	5836 BTU	£273.98
400747	Hamilton Compact 22 - 600x1100	600 mm	1100 mm	1881 W	6420 BTU	£298.71
400748	Hamilton Compact 22 - 600x1200	600 mm	1200 mm	2052 W	7003 BTU	£311.48
400749	Hamilton Compact 22 - 600x1300	600 mm	1300 mm	2223 W	7587 BTU	£351.90
400750	Hamilton Compact 22 - 600x1400	600 mm	1400 mm	2394 W	8171 BTU	£357.30
400751	Hamilton Compact 22 - 600x1500	600 mm	1500 mm	2565 W	8754 BTU	£426.30
400752	Hamilton Compact 22 - 600x1600	600 mm	1600 mm	2736 W	9338 BTU	£411.57
400753	Hamilton Compact 22 - 600x1800	600 mm	1800 mm	3078 W	10505 BTU	£459.73
400754	Hamilton Compact 22 - 600x2000	600 mm	2000 mm	3420 W	11672 BTU	£507.92
400755	Hamilton Compact 22 - 600x2200	600 mm	2200 mm	3762 W	12840 BTU	£674.09
400756	Hamilton Compact 22 - 600x2400	600 mm	2400 mm	4104 W	14007 BTU	£786.31
400757	Hamilton Compact 22 - 600x2700	600 mm	2700 mm	4617 W	15758 BTU	£827.29
400758	Hamilton Compact 22 - 600x3000	600 mm	3000 mm	5130 W	17509 BTU	£778.27
400759	Hamilton Compact 22 - 700x400	700 mm	400 mm	783 W	2672 BTU	£161.97
400760	Hamilton Compact 22 - 700x500	700 mm	500 mm	979 W	3341 BTU	£186.50
400761	Hamilton Compact 22 - 700x600	700 mm	600 mm	1175 W	4010 BTU	£216.02
400762	Hamilton Compact 22 - 700x700	700 mm	700 mm	1371 W	4679 BTU	£240.52
400763	Hamilton Compact 22 - 700x800	700 mm	800 mm	1567 W	5348 BTU	£280.92
400764	Hamilton Compact 22 - 700x900	700 mm	900 mm	1763 W	6017 BTU	£309.38
400765	Hamilton Compact 22 - 700x1000	700 mm	1000 mm	1959 W	6686 BTU	£343.90
400766	Hamilton Compact 22 - 700x1200	700 mm	1200 mm	2350 W	8021 BTU	£368.43
400767	Hamilton Compact 22 - 700x1400	700 mm	1400 mm	2743 W	9360 BTU	£440.52
400768	Hamilton Compact 22 - 700x1600	700 mm	1600 mm	3134 W	10698 BTU	£513.60
400769	Hamilton Compact 22 - 700x1800	700 mm	1800 mm	3526 W	12035 BTU	£558.93
400770	Hamilton Compact 22 - 900x400	900 mm	400 mm	973 W	3320 BTU	£274.52
400771	Hamilton Compact 22 - 900x500	900 mm	500 mm	1216 W	4150 BTU	£306.50
400772	Hamilton Compact 22 - 900x600	900 mm	600 mm	1459 W	4980 BTU	£377.06
400773	Hamilton Compact 22 - 900x700	900 mm	700 mm	1702 W	5810 BTU	£439.22
400774	Hamilton Compact 22 - 900x800	900 mm	800 mm	1946 W	6640 BTU	£501.39
400775	Hamilton Compact 22 - 900x900	900 mm	900 mm	2189 W	7470 BTU	£565.74
400776	Hamilton Compact 22 - 900x1000	900 mm	1000 mm	2432 W	8300 BTU	£594.02
400777	Hamilton Compact 22 - 900x1100	900 mm	1100 mm	2675 W	9130 BTU	£623.72
400778	Hamilton Compact 22 - 900x1200	900 mm	1200 mm	2918 W	9960 BTU	£654.91
400779	Hamilton Compact 22 - 900x1300	900 mm	1300 mm	3162 W	10791 BTU	£687.66
400780	Hamilton Compact 22 - 900x1400	900 mm	1400 mm	3405 W	11621 BTU	£722.04
400781	Hamilton Compact 22 - 900x1500	900 mm	1500 mm	3891 W	13281 BTU	£758.14
400782	Hamilton Compact 22 - 900x1600	900 mm	1600 mm	4378 W	14941 BTU	£796.05

Specifications are reproduced from the supplied 2026 product list. Confirm configuration and availability before ordering.
